Product features of Ultra Thin Led Panel Light:
- LED light source, CRI>85, 120LM/W, energy saving and environment friendly
- High quality lens to ensure full light transmission,bright and soft
light
- IC Airtight for use with direct contact to insulation
- RoHS Material,Low LED heat,High-precision constant current power
drive,long lifespan up to 50000 hours
- IP44,DUST PROOF. THIN thickness of lamp shade
- Wet Location allows for use indoors or outdoors
Specifications of Ultra Thin Led Panel Light:
| Power | 3W/5W/7W/9W/W12W/15W/18W/24W/30W |
| Color Temperature(CCT) | 3000K,4000K,5000K,6000K |
| Lamp Luminous Efficiency(lm/w) | 120lm/W |
| Color Rendering Index(Ra) | 80-83Ra or 95-98Ra |
| Support Dimmer | Triac dimmable or 0-10V dimmable |
| LED chip | SMD2835, Epistar, Samsung, Osram |
| Material | Aluminum+PC cover |
| Lifespan (hours) | 50000 |
| Frame Cover | White |
| Input Voltage(V) | 85-265V OR 12V DC, 24V DC |
| Cutout size | 68mm to 280mm |
| Outer diameter | 85-300mm |

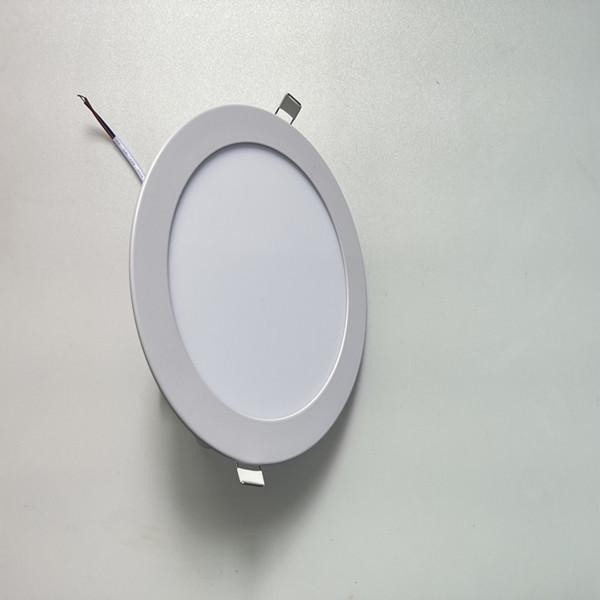

More pictures of Ultra Thin Led Panel Light :
Ultra Thin Led Panel Light are IC rated, meaning they are thermally
protected and won't overheat or ignite surrounding insulation in
the roof or overhead joist space. Both the light and its junction box are safe for direct contact
with ceiling insulation.
The Ultra Thin Led Panel Light use the new generation of LED chips
with higher lumens and lower power. Frosted LED lens for anti-glare and scratch-resistant.
This 30W thin ceiling light fixtures uses high quality LED chips,
brighter and more energy saving than traditional lights, no extra
bulbs, energy saving up to 85%, your monthly electricity bill will
be lower and lower, life span up to 50000H.
High quality fireproof plastic PC housing, not easy to deform and
damage, frosted lampshade with excellent dustproof performance,
easy to clean.
Application:
Ultra Thin Led Panel Light Widely Application - perfect for
bedroom, children's room, kitchen, Laundry, bathroom, hallway,
porches
FAQs:
1.Can I have a sample order for led light?
Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
2.What about the lead time?
Sample needs 2-4 working days, mass production time needs 12-18
working days
3.How to proceed an order for light?
Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our
suggestions.
Thirdly customer confirms the samples and places deposit for formal
order.
Fourthly We arrange the production.
